Overview

Upgrade your Celica's audio system with powerful 8" subwoofers installed directly in the front doors. This modification provides substantial low-frequency response without sacrificing trunk space, creating an impressive audio setup that's lighter than traditional enclosures while delivering excellent bass response for any music genre.

📋 Factory Options Impact

Required Tools & Materials

🚨 Critical Planning Requirements

• Window clearance: Subwoofer magnets must clear window mechanism when rolled down
• Door panel fitment: Modified opening must allow door panel to reinstall properly
• Amplifier requirement: 8" subwoofers require external amplification
• Irreversible modification: Cutting door metal cannot be easily undone

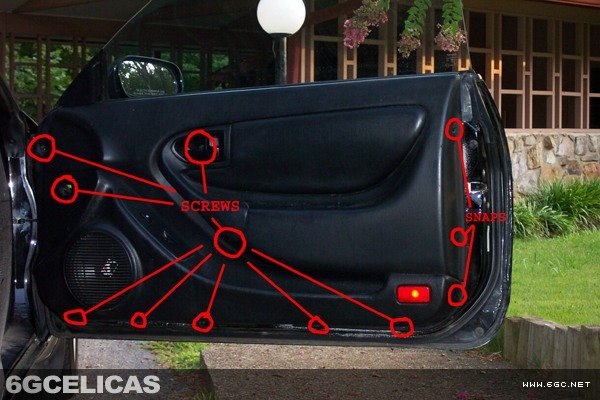

Step 1: Door Panel Removal

Carefully remove the door panel to access the speaker mounting area. A power screwdriver significantly speeds this process.

Removal sequence:

• Press in three rear door snaps (middle section) and pull out
• Remove screw by door handle
• Pull plastic piece to reveal hidden screw behind handle
• Remove screws along bottom and front side edges
• Remove two larger center mounting screws

Electrical disconnection:

• Disconnect rear door light (if equipped)
• Disconnect power option harnesses before full panel removal

Step 2: Stock Speaker Removal

Remove the existing speaker to assess the installation requirements:

• Disconnect speaker connector before removing mounting screws
• Remove four mounting screws securing speaker
• Remove speaker and assess existing opening size
• Note metal adapter rings (if factory power options equipped)

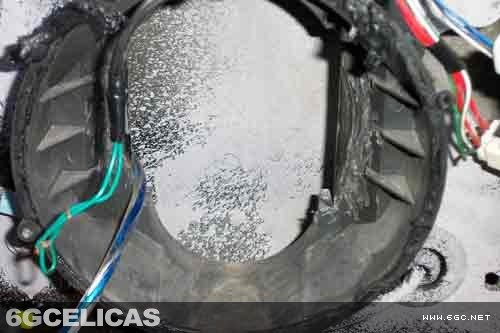

Step 3: Opening Modification (Critical Step)

This is the most challenging aspect requiring precision and patience. The modification depends heavily on your specific subwoofer choice and existing door configuration.

Cutting procedure:

• Mark required opening size based on subwoofer specifications
• Use Dremel with cutting disc for precise metal removal
• Test-fit frequently to avoid over-cutting
• Remove plastic backing material as needed for magnet clearance
• File/sand edges smooth to prevent injury and improve fit

⚠️ Critical consideration: Window mechanism clearance - verify subwoofer magnet won't interfere with window operation throughout full travel range.

Step 4: Heavy-Duty Wiring Installation

8" subwoofers require substantial power, necessitating upgraded wiring from the speaker location to your amplifier.

Wire routing process:

• Use 14-gauge speaker wire minimum (12-gauge preferred for high power)
• Straighten coat hanger to create wire routing guide
• Push guide wire through rubber door boot/conduit
• Attach speaker wire to guide and pull through
• Exercise patience - may require several attempts

Step 5: Amplifier Connection and Wire Routing

Route the heavy-gauge speaker wire from the door to your amplifier location. Installation varies based on your specific setup and amplifier placement.

Common routing options:

• Under door sills: Clean appearance, shown in image
• Under carpet: Completely hidden but more labor intensive
• Through A-pillar: Professional appearance but requires trim removal

Amplifier placement and power wire routing are beyond this guide's scope - consult amplifier installation resources.

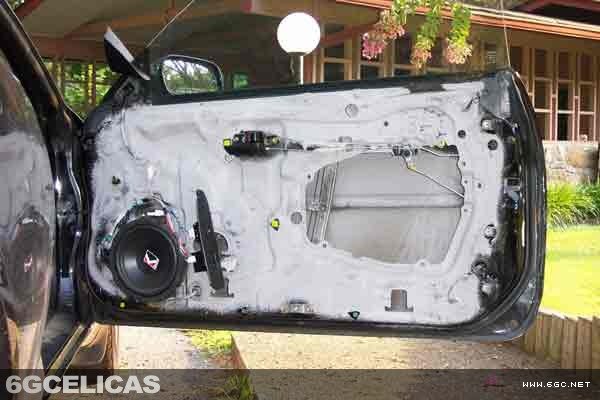

Step 6: Subwoofer Installation and Clearance

Install the subwoofers with proper clearance considerations:

Installation process:

• Connect speaker wire to subwoofer terminals
• Test subwoofer operation before final mounting
• Install subwoofer in modified opening
• Check window clearance throughout full travel

Clearance solutions:

• Fabricate spacer rings to push subwoofer outward if needed
• Ensure magnet doesn't contact window mechanism
• Verify door panel will fit over modified installation

Step 7: Final Assembly and Testing

Assembly process:

• Secure subwoofers with appropriate mounting screws
• Test complete system operation before door panel reinstallation
• Reinstall door panel in reverse order:
• Connect electrical harnesses first
• Position panel and secure with screws
• Test all door functions

Performance optimization:

• Consider sound deadening material installation
• Reduces rattles and improves bass retention
• Enhances overall audio quality

🎯 Performance Results

📸 Installation Gallery

💡 Critical Success Factors

• Window clearance: Test thoroughly before final assembly - interference can damage window mechanism
• Sound deadening: Essential for preventing rattles and maximizing bass output
• Amplifier requirement: 8" subwoofers need dedicated amplification for proper performance
• Fabrication skills: Precise cutting and fitting crucial for professional results
• Test frequently: Check fitment multiple times during cutting process
• Factory options matter: Installation complexity varies significantly with original equipment
