Overview

Transform your Celica's shifting experience with the TRD QuickShifter - a precision modification that dramatically reduces throw distance by 40-50%. This advanced installation requires careful attention to airbag systems, console removal, and precise linkage adjustments for professional results.

🚨 Critical Safety Requirements

• Airbag system disconnect required: Battery negative terminal must be disconnected before starting
• Metal spacers essential: TRD kit includes 4 spacers - car will NOT shift without them
• Proper torque specifications: Shifter mounting bolts require significant torque due to operational forces
• Linkage cable handling: Metal clips require proper technique to avoid damage

Required Tools & Materials

⚡ Pre-Installation Checklist

• Verify spacer count: Ensure all 4 metal spacers are included in kit
• Battery preparation: Disconnect negative terminal before starting
• Transmission position: Place in neutral for easier access
• Workspace preparation: Clean area for small parts organization

Step 1: Initial Disassembly & Safety

Safety disconnection:

• Disconnect battery negative terminal (required for airbag system work)
• Place transmission in neutral position

Console component removal:

• Remove shift knob by twisting counter-clockwise until loose
• Remove shift boot trim piece by pulling up on back, then front

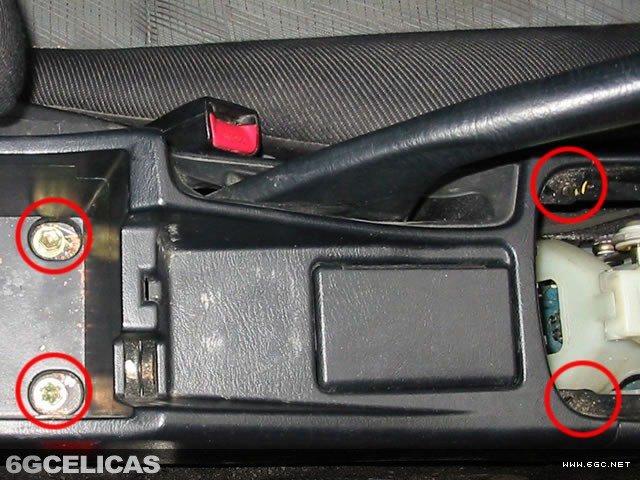

• Remove two screws near front of center console (circled in photo)
• Remove two 12mm bolts inside console compartment under carpet
• Disconnect change holder light wiring harness
• Remove entire center console from vehicle

Step 2: Knee Panel & Airbag System Access

Access clearance options:

• Remove two side screws from black knee panels (difficult access near seats)

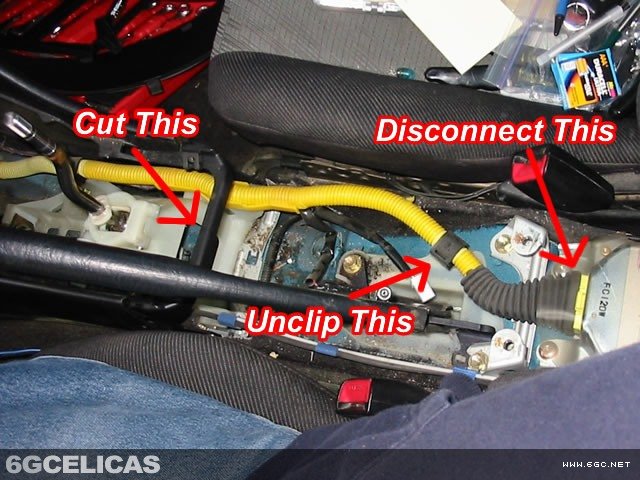

• Optional shortcut: Cut plastic connector between knee panels with wire cutters (marked in photo)
• This plastic piece provides no structural support once console is reinstalled

Airbag system preparation:

• Locate yellow wire loom connecting to silver airbag control unit
• Disconnect wire loom harness (marked in photo)
• Remove black clips holding yellow wire - use flathead screwdriver
• Move airbag wiring out of work area

Step 3: Stock Shifter Assembly Removal

Mounting bolt removal:

• Remove four 12mm bolts securing shifter to chassis
• Use socket extension for improved access in tight spaces
• Shifter assembly will be loose after bolt removal

Linkage cable release (critical step):

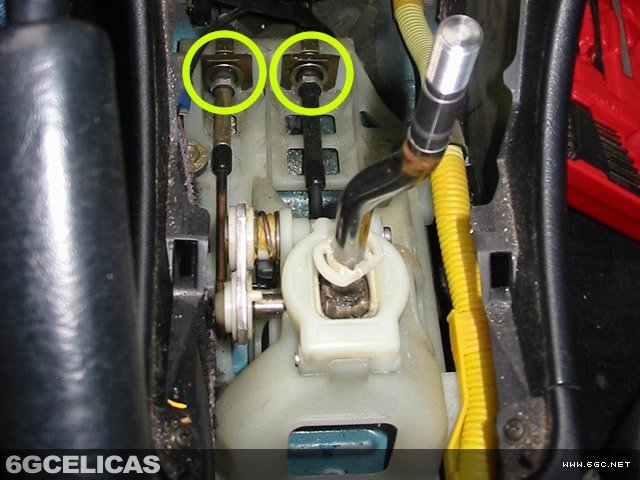

• Remove two metal pieces holding shift linkage cables in place
• Use pliers to grip metal pieces firmly
• Pull up while moving side-to-side with significant force
• These pieces require substantial force but will come out

Step 4: Linkage Cable Disconnection

Cable clip removal:

• Left side clip: Located on left side of shifter arm - pops off easily
• Cable slides off once clip is removed

Center clip removal (most difficult step):

• Located at end of shifter lever in center of assembly
• Move both sides of clip while working shifter ball out of cup
• Requires patience and persistence - this is the hardest part
• Ball joint will eventually release from linkage cable cup

Final removal: Extract original shifter assembly from vehicle

Step 5: TRD QuickShifter Installation

Initial positioning:

• Work TRD QuickShifter into position
• Position shift linkage cables close to connection points

Linkage cable reconnection:

• Right side (difficult): Place shifter ball into cable cup, snap clip into place
• Left side: Place cable on bar, snap clip back into position
• Both clips must be fully seated for proper operation

Metal piece reinstallation:

• Reinstall two metal pieces holding shift linkage cables
• Much easier to install than remove - pound into place with socket wrench

Step 6: Final Mounting & Testing

Critical spacer installation:

• Install one metal spacer between chassis and shifter for each bolt location
• Absolutely critical: Car will not shift without these spacers
• Insert 12mm bolts through spacers and tighten securely
• Apply significant torque - high forces act on shifter during operation

Function verification:

• Test shifting into all gears before reassembly
• Verify smooth operation and proper engagement
• Check for any binding or interference

Reassembly process:

• Reconnect airbag wiring harness
• Reinstall all interior panels and console components
• Install shift knob
• Reconnect battery negative terminal

🎯 Performance Results

💡 Pro Tips

• Spacer verification: Double-check all 4 spacers are installed - critical for operation
• Linkage clip technique: Center clip removal requires patience - work both sides simultaneously
• Access improvement: Cutting plastic knee panel connector significantly improves access
• Torque specifications: Mounting bolts must be very tight due to operational forces
• Safety first: Always disconnect battery when working with airbag systems
• Function test: Verify all gears engage properly before final reassembly
